Validate & Enrich Phone Numbers in Google Sheets with RapidAPI

{
  "meta": {
    "instanceId": "60c025075753afcab9f803964b4caaca9402f435deb4efafbb8e3b93b54d8752",
    "templateCredsSetupCompleted": true
  },
  "nodes": [
    {
      "id": "ae2548f3-672a-4fe2-9d1e-04c98bac8e26",
      "name": "When clicking ‘Execute workflow’",
      "type": "n8n-nodes-base.manualTrigger",
      "position": [
        0,
        0
      ],
      "parameters": {},
      "typeVersion": 1
    },
    {
      "id": "3ceca160-6e38-42db-8175-a64e5d56cdf4",
      "name": "Google Sheets",
      "type": "n8n-nodes-base.googleSheets",
      "position": [
        220,
        0
      ],
      "parameters": {
        "options": {},
        "sheetName": {
          "__rl": true,
          "mode": "url",
          "value": ""
        },
        "documentId": {
          "__rl": true,
          "mode": "url",
          "value": ""
        },
        "authentication": "serviceAccount"
      },
      "credentials": {
        "googleApi": {
          "id": "Rt0RWApx8PL9t0RF",
          "name": "Google Docs account"
        }
      },
      "typeVersion": 4.6
    },
    {
      "id": "31e4f63b-30a7-4bda-b08a-85306912ca34",
      "name": "Loop Over Items",
      "type": "n8n-nodes-base.splitInBatches",
      "position": [
        560,
        0
      ],
      "parameters": {
        "options": {}
      },
      "typeVersion": 3
    },
    {
      "id": "ff87e1b1-858b-4f99-89b2-9396a151626b",
      "name": "HTTP Request",
      "type": "n8n-nodes-base.httpRequest",
      "onError": "continueErrorOutput",
      "position": [
        840,
        20
      ],
      "parameters": {
        "url": "https://phone-number-validator11.p.rapidapi.com/phone.php",
        "method": "POST",
        "options": {},
        "sendBody": true,
        "contentType": "multipart-form-data",
        "sendHeaders": true,
        "bodyParameters": {
          "parameters": [
            {
              "name": "phone",
              "value": "={{ $json.phone }}"
            }
          ]
        },
        "headerParameters": {
          "parameters": [
            {
              "name": "x-rapidapi-host",
              "value": "phone-number-validator11.p.rapidapi.com"
            },
            {
              "name": "x-rapidapi-key",
              "value": "your key"
            }
          ]
        }
      },
      "retryOnFail": false,
      "typeVersion": 4.2
    },
    {
      "id": "e61fda30-c825-4d14-aabf-04ce8bbbf3ca",
      "name": "Google Sheets1",
      "type": "n8n-nodes-base.googleSheets",
      "position": [
        1200,
        180
      ],
      "parameters": {
        "columns": {
          "value": {
            "phone": "={{ $('Google Sheets').item.json.phone }}",
            "country": "={{ $json.country }}",
            "is_valid": "={{ $json.is_valid }}",
            "location": "={{ $json.location }}",
            "timezone": "={{ $json.timezones[0] }}"
          },
          "schema": [
            {
              "id": "phone",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "phone",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "is_valid",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "is_valid",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "country",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "country",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "location",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "location",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "timezone",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "timezone",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "row_number",
              "type": "string",
              "display": true,
              "removed": false,
              "readOnly": true,
              "required": false,
              "displayName": "row_number",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            }
          ],
          "mappingMode": "defineBelow",
          "matchingColumns": [
            "phone"
          ],
          "attemptToConvertTypes": false,
          "convertFieldsToString": false
        },
        "options": {},
        "operation": "update",
        "sheetName": {
          "__rl": true,
          "mode": "url",
          "value": ""
        },
        "documentId": {
          "__rl": true,
          "mode": "url",
          "value": ""
        },
        "authentication": "serviceAccount"
      },
      "credentials": {
        "googleApi": {
          "id": "Rt0RWApx8PL9t0RF",
          "name": "Google Docs account"
        }
      },
      "typeVersion": 4.6
    },
    {
      "id": "27898315-d755-48c7-8da0-a560ef937c89",
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -840,
        -180
      ],
      "parameters": {
        "width": 560,
        "height": 700,

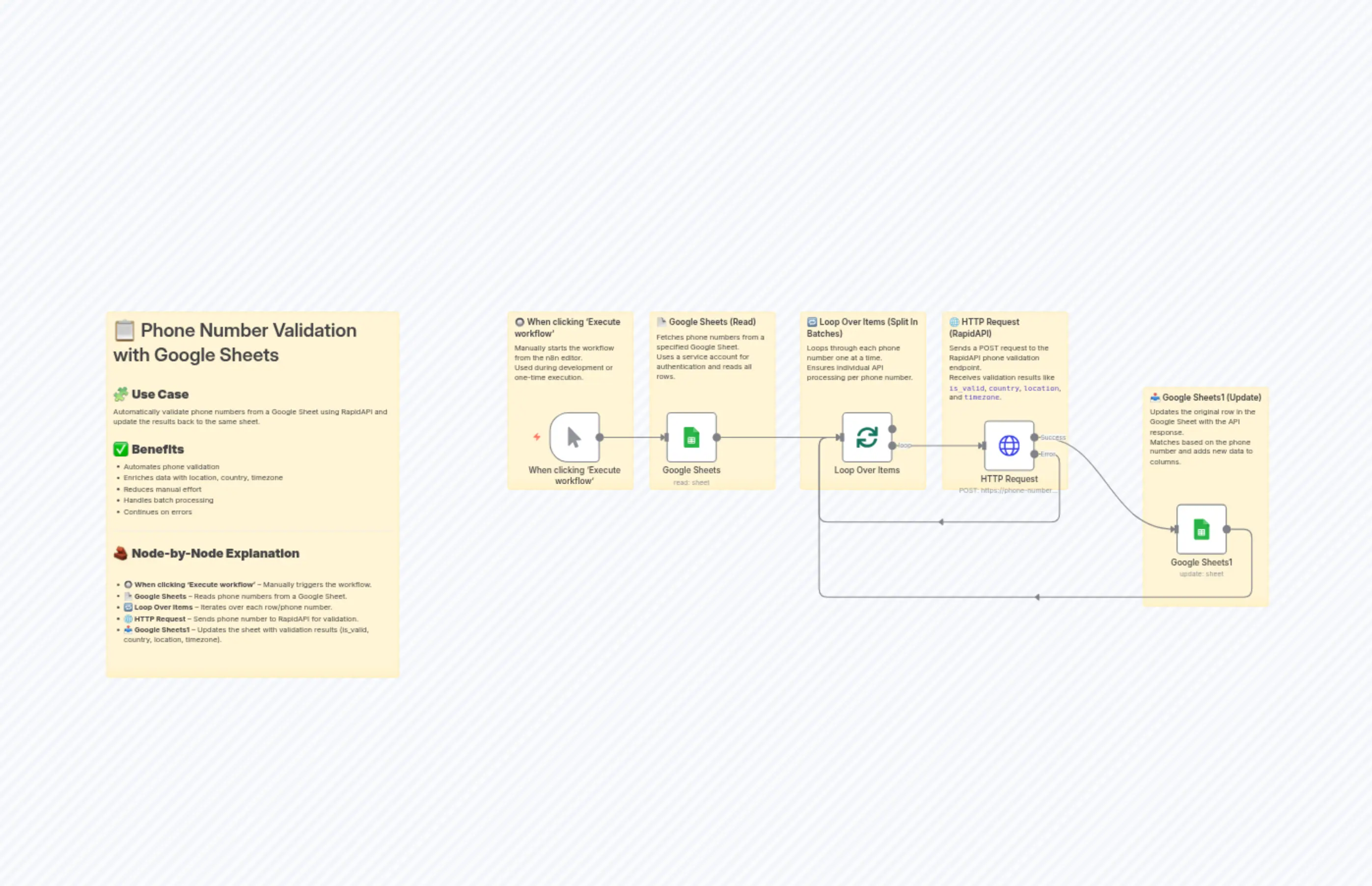

        "content": "# 📋 Phone Number Validation with Google Sheets \n\n## 🧩 **Use Case**\nAutomatically validate phone numbers from a Google Sheet using RapidAPI and update the results back to the same sheet.\n\n## ✅ **Benefits**\n- Automates phone validation  \n- Enriches data with location, country, timezone  \n- Reduces manual effort  \n- Handles batch processing  \n- Continues on errors  \n\n---\n\n## 🧱 **Node-by-Node Explanation**\n\n- **🔘 When clicking ‘Execute workflow’** – Manually triggers the workflow.  \n- **📄 Google Sheets** – Reads phone numbers from a Google Sheet.  \n- **🔁 Loop Over Items** – Iterates over each row/phone number.  \n- **🌐 HTTP Request** – Sends phone number to RapidAPI for validation.  \n- **📥 Google Sheets1** – Updates the sheet with validation results (is_valid, country, location, timezone).  \n"
      },
      "typeVersion": 1
    },
    {
      "id": "773175b3-9bf1-4843-81ea-f809c883f10e",
      "name": "Sticky Note1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -80,
        -180
      ],
      "parameters": {
        "height": 340,
        "content": "### 🔘 When clicking ‘Execute workflow’\nManually starts the workflow from the n8n editor.  \nUsed during development or one-time execution."
      },
      "typeVersion": 1
    },
    {
      "id": "00f5d71c-1a2e-4006-9111-46b6a863475b",
      "name": "Sticky Note2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        200,
        -180
      ],
      "parameters": {
        "height": 340,
        "content": "### 📄 Google Sheets (Read)\nFetches phone numbers from a specified Google Sheet.  \nUses a service account for authentication and reads all rows."
      },
      "typeVersion": 1
    },
    {
      "id": "bac029d1-2ce5-4499-a1b9-9d9d2112f196",
      "name": "Sticky Note3",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        480,
        -180
      ],
      "parameters": {
        "height": 340,
        "content": "### 🔁 Loop Over Items (Split In Batches)\nLoops through each phone number one at a time.  \nEnsures individual API processing per phone number."
      },
      "typeVersion": 1
    },
    {
      "id": "6fa7f8c8-7c17-4f83-a698-9ecc36201626",
      "name": "Sticky Note4",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        760,
        -180
      ],
      "parameters": {
        "height": 340,
        "content": "### 🌐 HTTP Request (RapidAPI)\nSends a POST request to the RapidAPI phone validation endpoint.  \nReceives validation results like `is_valid`, `country`, `location`, and `timezone`."
      },
      "typeVersion": 1
    },
    {
      "id": "32337c3b-6b95-46ac-b563-3ad05c55892c",
      "name": "Sticky Note5",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1140,
        -40
      ],
      "parameters": {
        "height": 420,
        "content": "\n### 📥 Google Sheets1 (Update)\nUpdates the original row in the Google Sheet with the API response.  \nMatches based on the phone number and adds new data to columns."
      },
      "typeVersion": 1
    }
  ],
  "pinData": {},
  "connections": {
    "HTTP Request": {
      "main": [
        [
          {
            "node": "Google Sheets1",
            "type": "main",
            "index": 0
          }
        ],
        [
          {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Google Sheets": {
      "main": [
        [
          {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Google Sheets1": {
      "main": [
        [
          {
            "node": "Loop Over Items",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Loop Over Items": {
      "main": [
        [],
        [
          {
            "node": "HTTP Request",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "When clicking ‘Execute workflow’": {
      "main": [
        [
          {
            "node": "Google Sheets",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}
