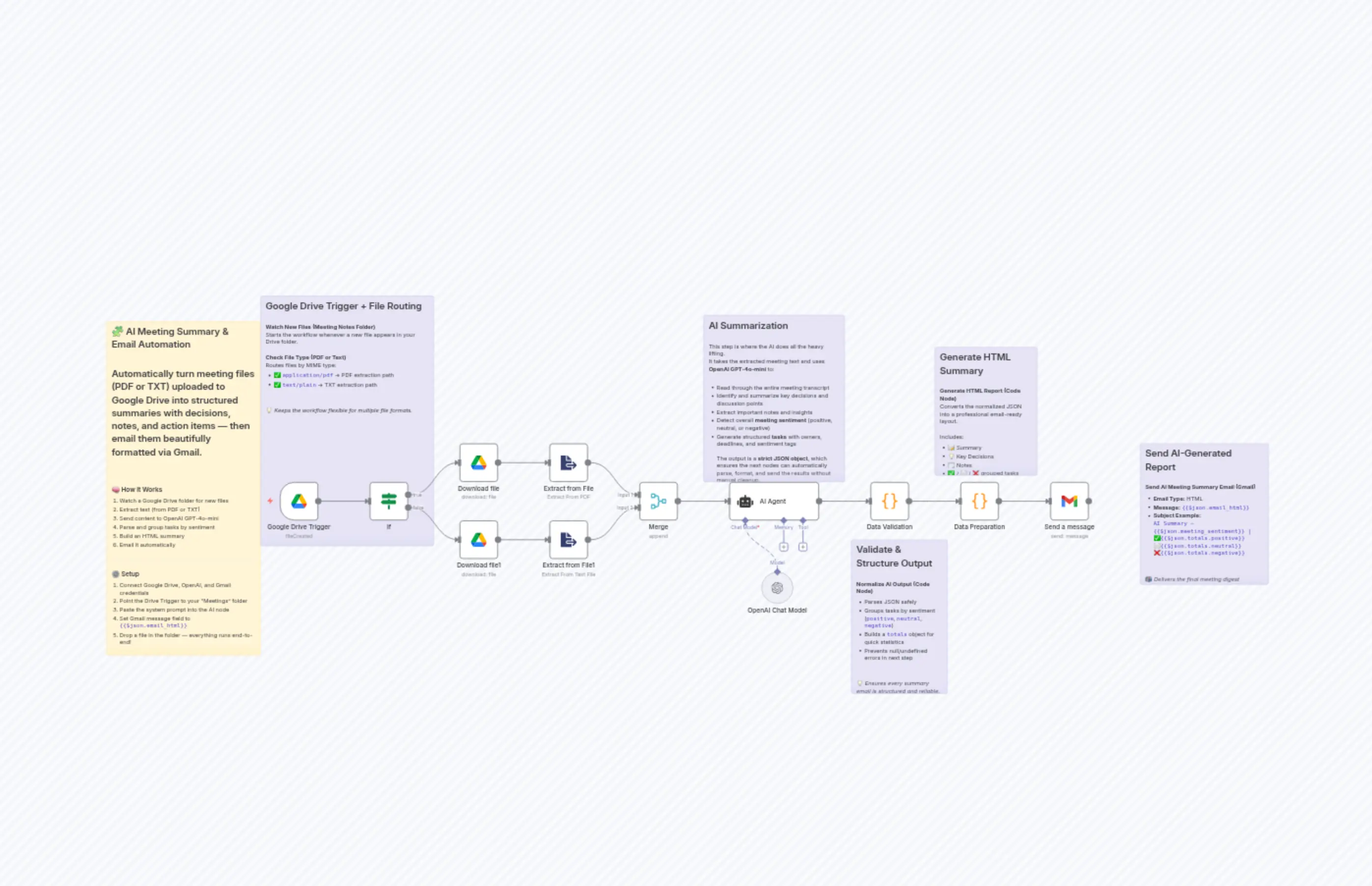

Email_Summarizer

{
  "id": "7O3XDyjnKZuQ1iOB",
  "meta": {
    "instanceId": "244c1be2296cca5db33ca6c21216dc529b5c3bc58583380120d574740ab6be48",
    "templateCredsSetupCompleted": true
  },
  "name": "Email_Summarizer",
  "tags": [],
  "nodes": [
    {
      "id": "72bc448c-16e2-43f5-a3c3-5332183a91a7",
      "name": "Google Drive Trigger",
      "type": "n8n-nodes-base.googleDriveTrigger",
      "position": [
        416,
        -32
      ],
      "parameters": {
        "event": "fileCreated",
        "options": {},
        "pollTimes": {
          "item": [
            {
              "mode": "everyHour"
            }
          ]
        },
        "triggerOn": "specificFolder",
        "folderToWatch": {
          "__rl": true,
          "mode": "list",
          "value": "1IsQ3KyyfiexcYPlOiAkzYaH4MHI4VBPZ",
          "cachedResultUrl": "https://drive.google.com/drive/folders/1IsQ3KyyfiexcYPlOiAkzYaH4MHI4VBPZ",
          "cachedResultName": "GraphRag"
        }
      },
      "credentials": {
        "googleDriveOAuth2Api": {
          "id": "mGPNCCV1nKuyoWiu",
          "name": "Google Drive account"
        }
      },
      "typeVersion": 1
    },
    {
      "id": "6d7063b9-8ff3-4a3a-83a0-b97e4ea64311",
      "name": "Extract from File",
      "type": "n8n-nodes-base.extractFromFile",
      "position": [
        1088,
        -128
      ],
      "parameters": {
        "options": {},
        "operation": "pdf"
      },
      "typeVersion": 1
    },
    {
      "id": "6794155c-c90a-4876-828f-dfdda5c9ab22",
      "name": "If",
      "type": "n8n-nodes-base.if",
      "position": [
        640,
        -32
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "strict"
          },
          "combinator": "and",
          "conditions": [
            {
              "id": "14105474-d15e-477a-8916-cef9313887f7",
              "operator": {
                "name": "filter.operator.equals",
                "type": "string",
                "operation": "equals"
              },
              "leftValue": "={{ $json.fileExtension }}",
              "rightValue": "pdf"
            }
          ]
        }
      },
      "typeVersion": 2.2
    },
    {
      "id": "59d342dc-011a-420f-ba22-330fda11c4fd",
      "name": "Extract from File1",
      "type": "n8n-nodes-base.extractFromFile",
      "position": [
        1088,
        64
      ],
      "parameters": {
        "options": {},
        "operation": "text"
      },
      "typeVersion": 1
    },
    {
      "id": "0b9f534e-b534-4f81-b760-2b95bd9be3f4",
      "name": "Download file",
      "type": "n8n-nodes-base.googleDrive",
      "position": [
        864,
        -128
      ],
      "parameters": {
        "fileId": {
          "__rl": true,
          "mode": "id",
          "value": "={{ $json.id }}"
        },
        "options": {},
        "operation": "download"
      },
      "credentials": {
        "googleDriveOAuth2Api": {
          "id": "mGPNCCV1nKuyoWiu",
          "name": "Google Drive account"
        }
      },
      "typeVersion": 3
    },
    {
      "id": "1686d72f-6448-496b-b8fb-a98f7a559dc3",
      "name": "Download file1",
      "type": "n8n-nodes-base.googleDrive",
      "position": [
        864,
        64
      ],
      "parameters": {
        "fileId": {
          "__rl": true,
          "mode": "id",
          "value": "={{ $('Google Drive Trigger').item.json.parents[0] }}"
        },
        "options": {},
        "operation": "download"
      },
      "credentials": {
        "googleDriveOAuth2Api": {
          "id": "mGPNCCV1nKuyoWiu",
          "name": "Google Drive account"
        }
      },
      "typeVersion": 3
    },
    {
      "id": "6f459193-17b1-4313-a251-b56febdaa721",
      "name": "Merge",
      "type": "n8n-nodes-base.merge",
      "position": [
        1312,
        -32
      ],
      "parameters": {},
      "typeVersion": 3.2
    },
    {
      "id": "84894f45-b8a8-4837-98f4-5eefe64a720f",
      "name": "AI Agent",
      "type": "@n8n/n8n-nodes-langchain.agent",
      "position": [
        1536,
        -32
      ],
      "parameters": {
        "text": "={{ $json.text }}",
        "options": {
          "systemMessage": "You are a helpful You are a rigorous meeting assistant. Convert the provided meeting text into a project plan.\nReturn ONLY strict JSON with these keys and types:\n- summary: string (<= 40 words)\n- decisions: string[]\n- notes: string[]\n- meeting_sentiment: one of {\"positive\",\"neutral\",\"negative\"}\n- tasks: array of objects {\n   description: string,\n   owner: string | \"TBD\",\n   deadline: ISO date string | \"TBD\",\n   sentiment: one of {\"positive\",\"neutral\",\"negative\"}\n}\nConstraints:\n- No prose, no markdown, no code fences.\n- If unknown, use empty list or \"TBD\".\n- Infer dates only if clearly stated; otherwise \"TBD\".\nassistant"
        },
        "promptType": "define"
      },
      "typeVersion": 2.2
    },
    {
      "id": "2e1d64e1-a23e-432b-b2f2-54b4491bf3be",
      "name": "OpenAI Chat Model",
      "type": "@n8n/n8n-nodes-langchain.lmChatOpenAi",
      "position": [
        1608,
        192
      ],
      "parameters": {
        "model": {
          "__rl": true,
          "mode": "list",
          "value": "gpt-4.1-mini"
        },
        "options": {}
      },
      "credentials": {
        "openAiApi": {
          "id": "q4FyMs2sPCHEzYj0",
          "name": "n8n free OpenAI API credits"
        }
      },
      "typeVersion": 1.2
    },
    {
      "id": "b37e84e6-4015-40b7-bcfe-745f1332f156",
      "name": "Send a message",
      "type": "n8n-nodes-base.gmail",
      "position": [
        2336,
        -32
      ],
      "webhookId": "4245dd03-5fc2-4a3b-9974-1ccd4c89099d",
      "parameters": {
        "sendTo": "={{ $('Google Drive Trigger').item.json.lastModifyingUser.emailAddress }}",
        "message": "={{ $json.email_html }}",
        "options": {},
        "subject": "=Meeting Summary — {{$json.meeting_sentiment}} tone"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "f4mgBX1LUYyUTArB",
          "name": "Gmail account"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "496624bb-9827-4fb3-9bc2-355265216e15",
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -16,
        -432
      ],
      "parameters": {
        "width": 384,
        "height": 832,
        "content": "## 🧩 AI Meeting Summary & Email Automation\n\nAutomatically turn meeting files (PDF or TXT) uploaded to Google Drive into structured summaries with decisions, notes, and action items — then email them beautifully formatted via Gmail.\n\n---\n\n### 🧠 How It Works\n1. Watch a Google Drive folder for new files  \n2. Extract text (from PDF or TXT)  \n3. Send content to OpenAI GPT-4o-mini  \n4. Parse and group tasks by sentiment  \n5. Build an HTML summary  \n6. Email it automatically\n\n---\n\n### ⚙️ Setup\n1. Connect Google Drive, OpenAI, and Gmail credentials  \n2. Point the Drive Trigger to your “Meetings” folder  \n3. Paste the system prompt into the AI node  \n4. Set Gmail message field to `{{$json.email_html}}`  \n5. Drop a file in the folder — everything runs end-to-end!\n\n---\n\n💡 *Perfect for team syncs, standups, sprint reviews, or client calls.*\n"
      },
      "typeVersion": 1
    },
    {
      "id": "309556b1-a5ca-498c-a5ad-9d9024e13147",
      "name": "Sticky Note1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        360,
        -496
      ],
      "parameters": {
        "color": 6,
        "width": 432,
        "height": 624,
        "content": "## Google Drive Trigger + File Routing\n\n**Watch New Files (Meeting Notes Folder)**  \nStarts the workflow whenever a new file appears in your Drive folder.\n\n**Check File Type (PDF or Text)**  \nRoutes files by MIME type:  \n- ✅ `application/pdf` → PDF extraction path  \n- ✅ `text/plain` → TXT extraction path  \n\n---\n\n💡 *Keeps the workflow flexible for multiple file formats.*\n"
      },
      "typeVersion": 1
    },
    {
      "id": "9b04ab30-9935-4db6-b2fb-029567ed167e",
      "name": "Sticky Note2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1472,
        -448
      ],
      "parameters": {
        "color": 6,
        "width": 352,
        "height": 416,
        "content": "## AI Summarization\n\nThis step is where the AI does all the heavy lifting.  \nIt takes the extracted meeting text and uses **OpenAI GPT-4o-mini** to:\n\n- Read through the entire meeting transcript  \n- Identify and summarize key decisions and discussion points  \n- Extract important notes and insights  \n- Detect overall **meeting sentiment** (positive, neutral, or negative)  \n- Generate structured **tasks** with owners, deadlines, and sentiment tags  \n\nThe output is a **strict JSON object**, which ensures the next nodes can automatically parse, format, and send the results without manual cleanup.\n"
      },
      "typeVersion": 1
    },
    {
      "id": "a4d2bdfa-8b93-423b-a70d-06386279e994",
      "name": "Sticky Note3",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1840,
        112
      ],
      "parameters": {
        "color": 6,
        "height": 384,
        "content": "##  Validate & Structure Output\n\n**Normalize AI Output (Code Node)**  \n- Parses JSON safely  \n- Groups tasks by sentiment (`positive`, `neutral`, `negative`)  \n- Builds a `totals` object for quick statistics  \n- Prevents null/undefined errors in next step\n\n---\n\n💡 *Ensures every summary email is structured and reliable.*\n"
      },
      "typeVersion": 1
    },
    {
      "id": "b5ed5b24-bcac-4514-8ab1-64b52785034a",
      "name": "Sticky Note4",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        2048,
        -368
      ],
      "parameters": {
        "color": 6,
        "width": 256,
        "height": 320,
        "content": "## Generate HTML Summary\n\n**Generate HTML Report (Code Node)**  \nConverts the normalized JSON into a professional email-ready layout.\n\nIncludes:\n- 📝 Summary  \n- 💡 Key Decisions  \n- 🗒️ Notes  \n- ✅ / ⚪ / ❌ grouped tasks  \n- Inline CSS for Gmail readability\n\n---\n\n📄 Output variable: `email_html`\n"
      },
      "typeVersion": 1
    },
    {
      "id": "49eb2ca5-6fb7-4659-adf6-bbbaac5c5bce",
      "name": "Sticky Note5",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        2560,
        -128
      ],
      "parameters": {
        "color": 6,
        "width": 320,
        "height": 352,
        "content": "##  Send AI-Generated Report\n\n**Send AI Meeting Summary Email (Gmail)**  \n- **Email Type:** HTML  \n- **Message:** `{{$json.email_html}}`  \n- **Subject Example:**  \n  `AI Summary – {{$json.meeting_sentiment}} | ✅{{$json.totals.positive}} ⚪{{$json.totals.neutral}} ❌{{$json.totals.negative}}`\n\n---\n\n📬 *Delivers the final meeting digest automatically to your inbox.*\n"
      },
      "typeVersion": 1
    },
    {
      "id": "83c30f5d-e519-4628-a42b-d278a0a3679c",
      "name": "Data Validation",
      "type": "n8n-nodes-base.code",
      "position": [
        1888,
        -32
      ],
      "parameters": {
        "jsCode": "/**\n * Robust parser for different upstream shapes:\n * - n8n AI Agent:        item.json.output (string)\n * - OpenAI Chat (HTTP):  item.json.body.choices[0].message.content\n * - OpenAI Chat (direct):item.json.choices[0].message.content\n * - Already an object:   item.json (if the LLM node already parsed JSON)\n */\nconst outputs = [];\n\nfor (const item of items) {\n  let content;   // string with JSON\n  let data;      // parsed object\n\n  // 1) Try common shapes\n  if (typeof item.json?.output === 'string') {\n    // n8n \"AI Agent\" node output\n    content = item.json.output;\n  } else if (typeof item.json?.choices?.[0]?.message?.content === 'string') {\n    // direct Chat Completions shape\n    content = item.json.choices[0].message.content;\n  } else if (typeof item.json?.body?.choices?.[0]?.message?.content === 'string') {\n    // HTTP Request node -> body -> choices\n    content = item.json.body.choices[0].message.content;\n  } else if (typeof item.json === 'string') {\n    // just a raw string\n    content = item.json;\n  } else if (typeof item.json === 'object' && item.json !== null && (\n             item.json.summary || item.json.tasks || item.json.decisions || item.json.notes)) {\n    // already parsed into an object with expected keys\n    data = item.json;\n  }\n\n  // 2) If we still need to parse, do it\n  if (!data) {\n    if (typeof content !== 'string') {\n      throw new Error('Could not locate LLM text output in upstream node. Check: output, choices[0].message.content, or body.choices...');\n    }\n    try {\n      data = JSON.parse(content);\n    } catch {\n      throw new Error('LLM did not return valid JSON. Verify the system prompt and response_format=json_object.');\n    }\n  }\n\n  // 3) Normalize the schema\n  if (typeof data.summary !== 'string') data.summary = '';\n  if (!Array.isArray(data.decisions)) data.decisions = [];\n  if (!Array.isArray(data.notes)) data.notes = [];\n  if (!['positive','neutral','negative'].includes(data.meeting_sentiment)) {\n    data.meeting_sentiment = 'neutral';\n  }\n  if (!Array.isArray(data.tasks)) data.tasks = [];\n\n  data.tasks = data.tasks.map(t => ({\n    description: t?.description ?? '',\n    owner: t?.owner ?? 'TBD',\n    deadline: t?.deadline ?? 'TBD',\n    sentiment: ['positive','neutral','negative'].includes(t?.sentiment) ? t.sentiment : 'neutral'\n  }));\n\n  // Optional grouped and totals\n  const grouped = { positive: [], neutral: [], negative: [] };\n  for (const t of data.tasks) grouped[t.sentiment].push(t);\n  data.tasks_grouped = grouped;\n  data.totals = {\n    positive: grouped.positive.length,\n    neutral: grouped.neutral.length,\n    negative: grouped.negative.length\n  };\n\n  outputs.push({ json: data });\n}\n\nreturn outputs;\n"
      },
      "typeVersion": 2
    },
    {
      "id": "4214d550-f3f0-40e0-87dc-3aab71ad931b",
      "name": "Data Preparation",
      "type": "n8n-nodes-base.code",
      "position": [
        2112,
        -32
      ],
      "parameters": {
        "jsCode": "// This Code node expects your previous node to output ONE item\n// with keys: summary, decisions[], notes[], meeting_sentiment,\n// tasks_grouped{positive[],neutral[],negative[]}, totals{...}.\n\n// helper funcs\nconst esc = (s) => String(s ?? '')\n  .replace(/&/g,'&amp;').replace(/</g,'&lt;').replace(/>/g,'&gt;')\n  .replace(/\"/g,'&quot;').replace(/'/g,'&#39;');\n\nconst li = (s) => `<li>${esc(s)}</li>`;\nconst liTask = (t) =>\n  `<li><strong>${esc(t.description)}</strong> — ${esc(t.owner)} <em>(Deadline: ${esc(t.deadline)})</em></li>`;\n\n// read current item\nconst d = $json;\n\n// fallbacks if any section is missing\nconst decisions = Array.isArray(d.decisions) ? d.decisions : [];\nconst notes     = Array.isArray(d.notes) ? d.notes : [];\nconst tg        = d.tasks_grouped || { positive: [], neutral: [], negative: [] };\nconst totals    = d.totals || {\n  positive: tg.positive?.length ?? 0,\n  neutral:  tg.neutral?.length  ?? 0,\n  negative: tg.negative?.length ?? 0\n};\n\n// build section HTML safely\nconst decisionsHtml = decisions.map(li).join('');\nconst notesHtml     = notes.map(li).join('');\nconst posHtml       = (tg.positive || []).map(liTask).join('');\nconst neuHtml       = (tg.neutral  || []).map(liTask).join('');\nconst negHtml       = (tg.negative || []).map(liTask).join('');\n\n// MINIMAL, COMPATIBLE HTML (no handlebars, no fancy CSS needed)\nconst html = `<!DOCTYPE html>\n<html>\n  <body style=\"font-family: Arial, Helvetica, sans-serif; color:#1f2937; line-height:1.55; margin:0; padding:16px;\">\n    <h2 style=\"margin:0 0 8px 0;\">📝 Meeting Summary</h2>\n    <p style=\"margin:0 0 8px 0;\">${esc(d.summary || '')}</p>\n\n    <p style=\"margin:8px 0;\">\n       <strong>Positive:</strong> ${totals.positive}\n      &nbsp;•&nbsp; <strong>Neutral:</strong> ${totals.neutral}\n      &nbsp;•&nbsp; <strong>Negative:</strong> ${totals.negative}\n    </p>\n\n    ${decisionsHtml ? `\n      <h3 style=\"margin:16px 0 6px;\">💡 Key Decisions</h3>\n      <ul style=\"margin:0 0 12px 18px;\">${decisionsHtml}</ul>\n    ` : ''}\n\n    ${notesHtml ? `\n      <h3 style=\"margin:16px 0 6px;\">🗒️ Notes</h3>\n      <ul style=\"margin:0 0 12px 18px;\">${notesHtml}</ul>\n    ` : ''}\n\n    ${posHtml ? `\n      <h3 style=\"margin:16px 0 6px;\">✅ Positive Tasks</h3>\n      <ul style=\"margin:0 0 12px 18px;\">${posHtml}</ul>\n    ` : ''}\n\n    ${neuHtml ? `\n      <h3 style=\"margin:16px 0 6px;\">⚪ Neutral Tasks</h3>\n      <ul style=\"margin:0 0 12px 18px;\">${neuHtml}</ul>\n    ` : ''}\n\n    ${negHtml ? `\n      <h3 style=\"margin:16px 0 6px;\">❌ Negative Tasks</h3>\n      <ul style=\"margin:0 0 12px 18px;\">${negHtml}</ul>\n    ` : ''}\n\n    <p style=\"font-size:12px; color:#6b7280; margin-top:16px;\">Sent by n8n • AI Meeting Assistant</p>\n  </body>\n</html>`;\n\n// output same data + ready-to-send html\nreturn [{ json: { ...d, email_html: html } }];\n"
      },
      "typeVersion": 2
    }
  ],
  "active": false,
  "pinData": {},
  "settings": {
    "executionOrder": "v1"
  },
  "versionId": "dea36ea5-7b21-4251-87b9-e9d64ed31e7b",
  "connections": {
    "If": {
      "main": [
        [
          {
            "node": "Download file",
            "type": "main",
            "index": 0
          }
        ],
        [
          {
            "node": "Download file1",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Merge": {
      "main": [
        [
          {
            "node": "AI Agent",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "AI Agent": {
      "main": [
        [
          {
            "node": "Data Validation",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Download file": {
      "main": [
        [
          {
            "node": "Extract from File",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Download file1": {
      "main": [
        [
          {
            "node": "Extract from File1",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Data Validation": {
      "main": [
        [
          {
            "node": "Data Preparation",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Data Preparation": {
      "main": [
        [
          {
            "node": "Send a message",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Extract from File": {
      "main": [
        [
          {
            "node": "Merge",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "OpenAI Chat Model": {
      "ai_languageModel": [
        [
          {
            "node": "AI Agent",
            "type": "ai_languageModel",
            "index": 0
          }
        ]
      ]
    },
    "Extract from File1": {
      "main": [
        [
          {
            "node": "Merge",
            "type": "main",
            "index": 1
          }
        ]
      ]
    },
    "Google Drive Trigger": {
      "main": [
        [
          {
            "node": "If",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}
