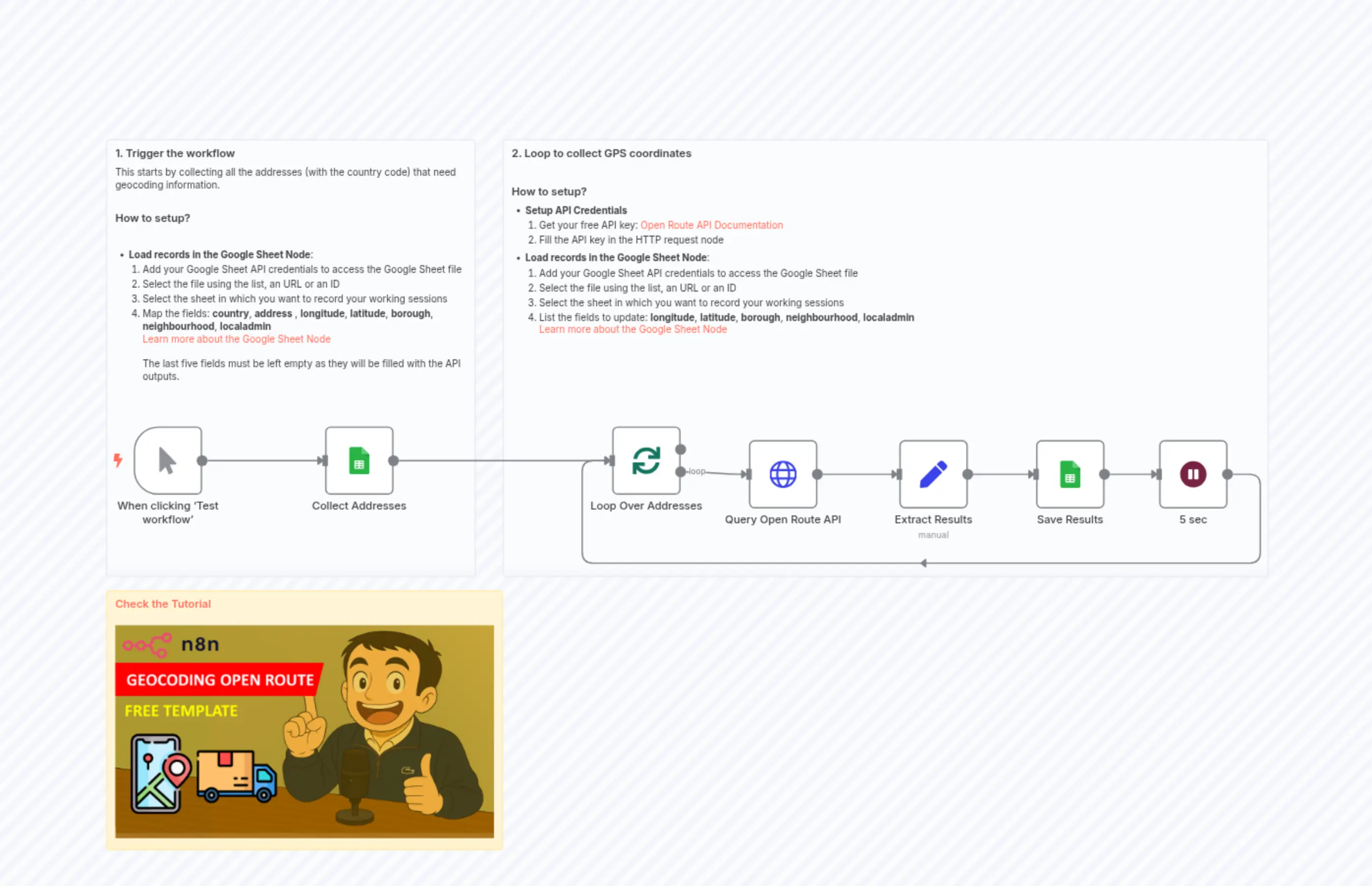

🚛🗺️ Geocoding for Logistics with Open Route API and Google Sheets
Description
Categories
⚙️ Automation
Nodes Used
n8n-nodes-base.setn8n-nodes-base.waitn8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.httpRequestn8n-nodes-base.googleSheetsn8n-nodes-base.googleSheetsn8n-nodes-base.manualTriggern8n-nodes-base.splitInBatches
PriceFree
Views0
Last Updated11/28/2025
workflow.json
{
"meta": {
"instanceId": ""
},
"nodes": [
{
"id": "b1d00cd4-b9e8-4d84-b580-08368fbb9396",
"name": "Sticky Note2",
"type": "n8n-nodes-base.stickyNote",
"position": [
20,
-160
],
"parameters": {
"color": 7,
"width": 540,
"height": 640,
"content": "### 1. Trigger the workflow\nThis starts by collecting all the addresses (with the country code) that need geocoding information.\n\n#### How to setup?\n\n- **Load records in the Google Sheet Node**:\n 1. Add your Google Sheet API credentials to access the Google Sheet file\n 2. Select the file using the list, an URL or an ID\n 3. Select the sheet in which you want to record your working sessions\n 4. Map the fields: **country**, **address** , **longitude**, **latitude**, **borough**, **neighbourhood**, **localadmin**\n [Learn more about the Google Sheet Node](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.googlesheets)\n\nThe last five fields must be left empty as they will be filled with the API outputs.\n"
},
"typeVersion": 1
},
{
"id": "32f84996-0480-4c0b-aab7-3f5ebca9dd4e",
"name": "When clicking ‘Test workflow’",
"type": "n8n-nodes-base.manualTrigger",
"position": [
60,
260
],
"parameters": {},
"typeVersion": 1
},
{
"id": "fe628240-0550-42dd-a375-7ecba134fd6c",
"name": "Sticky Note",
"type": "n8n-nodes-base.stickyNote",
"position": [
600,
-160
],
"parameters": {
"color": 7,
"width": 1120,
"height": 640,
"content": "### 2. Loop to collect GPS coordinates\n\n#### How to setup?\n- **Setup API Credentials**\n 1. Get your free API key: [Open Route API Documentation](https://openrouteservice.org/dev/#/api-docs)\n 2. Fill the API key in the HTTP request node\n- **Load records in the Google Sheet Node**:\n 1. Add your Google Sheet API credentials to access the Google Sheet file\n 2. Select the file using the list, an URL or an ID\n 3. Select the sheet in which you want to record your working sessions\n 4. List the fields to update: **longitude**, **latitude**, **borough**, **neighbourhood**, **localadmin**\n [Learn more about the Google Sheet Node](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.googlesheets)\n"
},
"typeVersion": 1
},
{
"id": "eac06796-f40d-4c94-96b2-4ad672053295",
"name": "Collect Addresses",
"type": "n8n-nodes-base.googleSheets",
"position": [
340,
260
],
"parameters": {
"options": {},
"sheetName": {
"__rl": true,
"mode": "list",
"value": 1232640606,
"cachedResultUrl": "",
"cachedResultName": ""
},
"documentId": {
"__rl": true,
"mode": "list",
"value": "",
"cachedResultUrl": "",
"cachedResultName": ""
}
},
"notesInFlow": true,
"typeVersion": 4.6
},
{
"id": "13198c2c-cdca-4a5e-893a-1fac24090f33",
"name": "Query Open Route API",
"type": "n8n-nodes-base.httpRequest",
"position": [
960,
280
],
"parameters": {
"url": "https://api.openrouteservice.org/geocode/search",
"options": {},
"sendQuery": true,
"sendHeaders": true,
"queryParameters": {
"parameters": [
{
"name": "api_key"
},
{
"name": "text",
"value": "={{ $json.address }}"
},
{
"name": "boundary.country",
"value": "={{ $json.country }}"
},
{
"name": "sources",
"value": "openstreetmap"
},
{
"name": "size",
"value": "1"
}
]
},
"headerParameters": {
"parameters": [
{
"name": "Content-Type",
"value": "application/json; charset=utf-8"
},
{
"name": "Accept",
"value": "application/json, application/geo+json, application/gpx+xml, img/png; charset=utf-8"
}
]
}
},
"notesInFlow": true,
"typeVersion": 4.2
},
{
"id": "d0ad6f7e-8049-45c4-8022-8c16a8f71392",
"name": "Loop Over Addresses",
"type": "n8n-nodes-base.splitInBatches",
"position": [
760,
260
],
"parameters": {
"options": {}
},
"typeVersion": 3
},
{
"id": "c84f27c6-3905-455a-b8a7-bb1d6bffafe0",
"name": "Save Results",
"type": "n8n-nodes-base.googleSheets",
"position": [
1380,
280
],
"parameters": {
"columns": {
"value": {
"id": "={{ $('Loop Over Addresses').item.json.id }}",
"borough": "={{ $json.borough }}",
"latitude": "={{ $json.latitude }}",
"longitude": "={{ $json.longitude }}",
"localadmin": "={{ $json.localadmin }}",
"neighbourhood": "={{ $json.neighbourhood }}"
},
"schema": [
{
"id": "id",
"type": "string",
"display": true,
"removed": false,
"required": false,
"displayName": "id",
"defaultMatch": true,
"canBeUsedToMatch": true
},
{
"id": "country",
"type": "string",
"display": true,
"required": false,
"displayName": "country",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "address",
"type": "string",
"display": true,
"required": false,
"displayName": "address",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "longitude",
"type": "string",
"display": true,
"required": false,
"displayName": "longitude",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "latitude",
"type": "string",
"display": true,
"required": false,
"displayName": "latitude",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "borough",
"type": "string",
"display": true,
"required": false,
"displayName": "borough",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "neighbourhood",
"type": "string",
"display": true,
"required": false,
"displayName": "neighbourhood",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "localadmin",
"type": "string",
"display": true,
"required": false,
"displayName": "localadmin",
"defaultMatch": false,
"canBeUsedToMatch": true
},
{
"id": "row_number",
"type": "string",
"display": true,
"removed": true,
"readOnly": true,
"required": false,
"displayName": "row_number",
"defaultMatch": false,
"canBeUsedToMatch": true
}
],
"mappingMode": "defineBelow",
"matchingColumns": [
"id"
],
"attemptToConvertTypes": false,
"convertFieldsToString": false
},
"options": {},
"operation": "update",
"sheetName": {
"__rl": true,
"mode": "list",
"value": 1232640606,
"cachedResultUrl": "",
"cachedResultName": ""
},
"documentId": {
"__rl": true,
"mode": "list",
"value": "",
"cachedResultUrl": "",
"cachedResultName": ""
}
},
"notesInFlow": true,
"typeVersion": 4.6
},
{
"id": "6fa85604-4db7-431d-b0fd-b6cbb1773c12",
"name": "Extract Results",
"type": "n8n-nodes-base.set",
"position": [
1180,
280
],
"parameters": {
"options": {},
"assignments": {
"assignments": [
{
"id": "e4c92077-f294-4e49-8276-20d1441c0c2c",
"name": "longitude",
"type": "string",
"value": "={{ $json.features[0].geometry.coordinates[0] }}"
},
{
"id": "899e5304-e7a1-4ce1-bf9a-f403d74934fb",
"name": "latitude",
"type": "string",
"value": "={{ $json.features[0].geometry.coordinates[1] }}"
},
{
"id": "5b35642b-dda4-42b8-b7bb-1275616bfb59",
"name": "borough",
"type": "string",
"value": "={{ $json.features[0].properties.borough }}"
},
{
"id": "aa74bd9a-f543-48e1-a69b-0e6472bda053",
"name": "neighbourhood",
"type": "string",
"value": "={{ $json.features[0].properties.neighbourhood }}"
},
{
"id": "7f303dc8-4e28-4d46-8e3e-9db00dbcac3a",
"name": "localadmin",
"type": "string",
"value": "={{ $json.features[0].properties.localadmin }}"
}
]
}
},
"typeVersion": 3.4
},
{
"id": "71c85728-f291-4a67-8d0d-8c7fcd38905d",
"name": "5 sec",
"type": "n8n-nodes-base.wait",
"position": [
1560,
280
],
"webhookId": "6ecebf96-14ed-4c7b-b467-eb48c143408e",
"parameters": {},
"typeVersion": 1.1
},
{
"id": "7ca2b5ea-9af8-425d-958e-2f6ffe01656e",
"name": "Sticky Note4",
"type": "n8n-nodes-base.stickyNote",
"position": [
20,
500
],
"parameters": {
"width": 580,
"height": 380,
"content": "### [Check the Tutorial](https://www.youtube.com/watch?v=IlblIlKcL0k)\n"
},
"typeVersion": 1
}
],
"pinData": {},
"connections": {
"5 sec": {
"main": [
[
{
"node": "Loop Over Addresses",
"type": "main",
"index": 0
}
]
]
},
"Save Results": {
"main": [
[
{
"node": "5 sec",
"type": "main",
"index": 0
}
]
]
},
"Extract Results": {
"main": [
[
{
"node": "Save Results",
"type": "main",
"index": 0
}
]
]
},
"Collect Addresses": {
"main": [
[
{
"node": "Loop Over Addresses",
"type": "main",
"index": 0
}
]
]
},
"Loop Over Addresses": {
"main": [
[],
[
{
"node": "Query Open Route API",
"type": "main",
"index": 0
}
]
]
},
"Query Open Route API": {
"main": [
[
{
"node": "Extract Results",
"type": "main",
"index": 0
}
]
]
},
"When clicking ‘Test workflow’": {
"main": [
[
{
"node": "Collect Addresses",
"type": "main",
"index": 0
}
]
]
}
}
}
