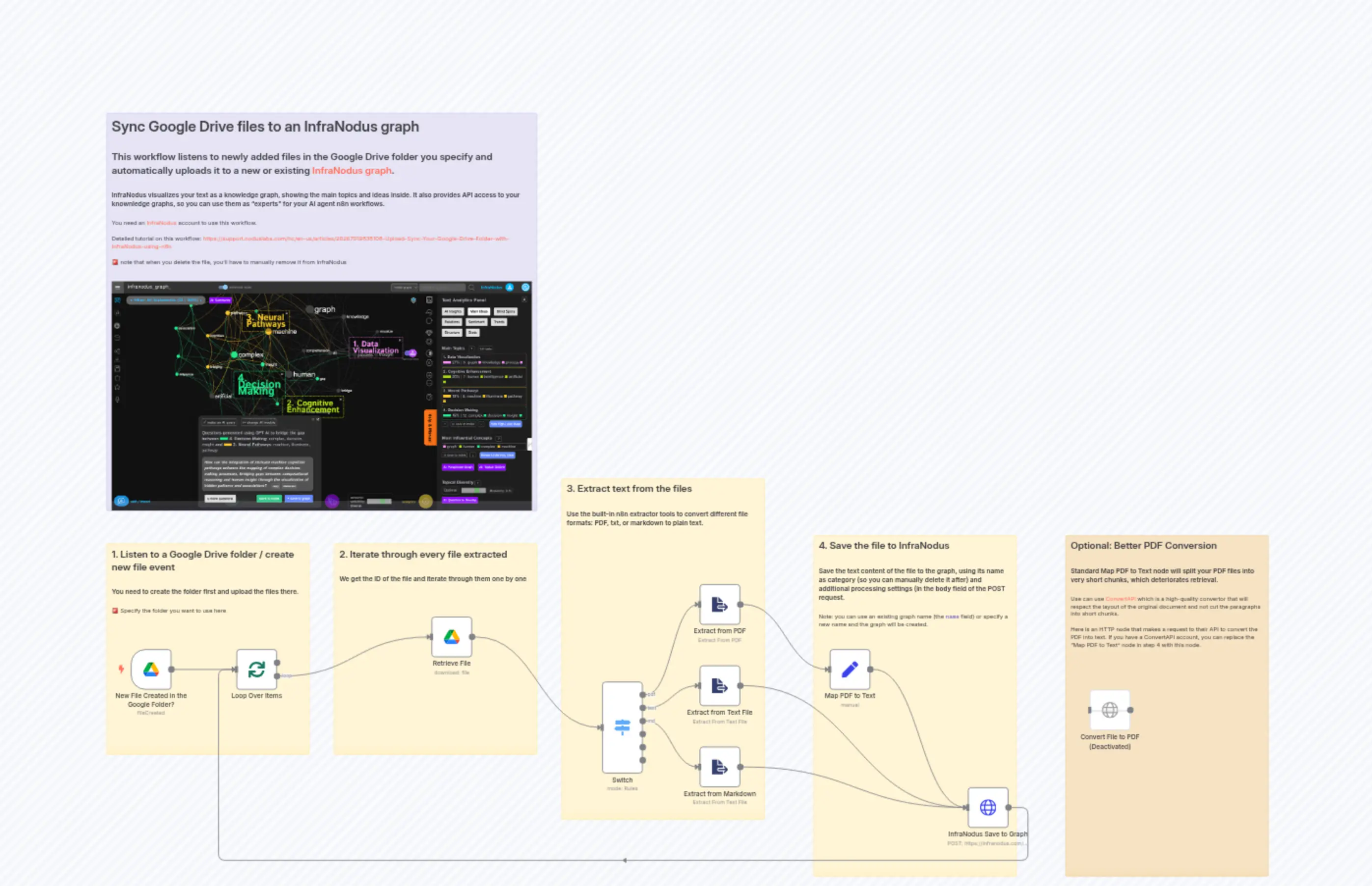

Sync Google Drive files to an InfraNodus Graph
Description
Categories
🤖 AI & Machine Learning
Nodes Used
n8n-nodes-base.setn8n-nodes-base.switchn8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.googleDriven8n-nodes-base.httpRequest
PriceFree
Views0
Last Updated11/28/2025
workflow.json
{
"id": "SMDFq24qv9Xc02SM",
"meta": {
"instanceId": "2a26454b0172ffcb8d70ba77c235b1209f92cd71bf06c79ba609c7173b416d68",
"templateCredsSetupCompleted": true
},
"name": "Sync Google Drive files to an InfraNodus Graph",
"tags": [],
"nodes": [
{
"id": "b3c9c0dd-7f02-42d0-9fd0-bf25319cf0f0",
"name": "Loop Over Items",
"type": "n8n-nodes-base.splitInBatches",
"position": [
-220,
-100
],
"parameters": {
"options": {}
},
"typeVersion": 3
},
{
"id": "a41556ba-b7db-41b5-8213-e1aff3f7fe03",
"name": "Retrieve File",
"type": "n8n-nodes-base.googleDrive",
"position": [
260,
-180
],
"parameters": {
"fileId": {
"__rl": true,
"mode": "id",
"value": "={{ $json.id }}"
},
"options": {},
"operation": "download"
},
"credentials": {
"googleDriveOAuth2Api": {
"id": "oz9iNMxcuQ2pxr1e",
"name": "Google Drive account"
}
},
"typeVersion": 3
},
{
"id": "bc74f177-7ff6-4c3b-b63a-6f9f2d11a9b8",
"name": "Switch",
"type": "n8n-nodes-base.switch",
"position": [
680,
-20
],
"parameters": {
"rules": {
"values": [
{
"outputKey": "pdf",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "7b4e792b-ab6d-4b9b-88a1-d8e51bea6853",
"operator": {
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": "application/pdf"
}
]
},
"renameOutput": true
},
{
"outputKey": "text",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "09b7d7c5-5353-4719-b4e2-072e4da39948",
"operator": {
"name": "filter.operator.equals",
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": "text/plain"
}
]
},
"renameOutput": true
},
{
"outputKey": "md",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "cb2e6726-97d8-4541-8383-deafff9b18e6",
"operator": {
"name": "filter.operator.equals",
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": "text/markdown"
}
]
},
"renameOutput": true
},
{
"outputKey": "json",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "d2763a45-a592-47c8-868f-59dfcd17a71c",
"operator": {
"name": "filter.operator.equals",
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": "application/json"
}
]
},
"renameOutput": true
},
{
"outputKey": "docs",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "0d9b561f-89c5-479e-a4e2-1f5f05fa8417",
"operator": {
"name": "filter.operator.equals",
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": ""
}
]
},
"renameOutput": true
},
{
"outputKey": "csv",
"conditions": {
"options": {
"version": 2,
"leftValue": "",
"caseSensitive": true,
"typeValidation": "strict"
},
"combinator": "and",
"conditions": [
{
"id": "6b19deed-5d00-4796-bb9d-b4d87564a751",
"operator": {
"name": "filter.operator.equals",
"type": "string",
"operation": "equals"
},
"leftValue": "={{$binary[\"data\"].mimeType}}",
"rightValue": "csv"
}
]
},
"renameOutput": true
}
]
},
"options": {}
},
"typeVersion": 3.2
},
{
"id": "1844fd33-c4a3-43ef-b945-dcf433f7e424",
"name": "Extract from PDF",
"type": "n8n-nodes-base.extractFromFile",
"position": [
920,
-260
],
"parameters": {
"options": {},
"operation": "pdf"
},
"typeVersion": 1
},
{
"id": "6da5e064-8ea3-4c2c-9bc9-5c66deb63b3a",
"name": "Extract from Text File",
"type": "n8n-nodes-base.extractFromFile",
"position": [
920,
-60
],
"parameters": {
"options": {},
"operation": "text"
},
"typeVersion": 1
},
{
"id": "6b70f1e5-82ca-4109-8047-7b9491fa7619",
"name": "Extract from Markdown",
"type": "n8n-nodes-base.extractFromFile",
"position": [
920,
140
],
"parameters": {
"options": {},
"operation": "text"
},
"typeVersion": 1
},
{
"id": "e46d8e8d-72b5-4a57-bb09-6915b4af28e5",
"name": "InfraNodus Save to Graph",
"type": "n8n-nodes-base.httpRequest",
"position": [
1580,
240
],
"parameters": {
"url": "https://infranodus.com/api/v1/graphAndStatements?doNotSave=false&optimize=develop&includeGraph=false&includeGraphSummary=true&includeGraph=false",
"method": "POST",
"options": {},
"sendBody": true,
"authentication": "genericCredentialType",
"bodyParameters": {
"parameters": [
{
"name": "name",
"value": "polysingularity_from_google_drive"
},
{
"name": "text",
"value": "={{ $json.data }}"
},
{
"name": "=categories",
"value": "=[filename: {{ $('Switch').item.json.name }}]"
},
{
"name": "contextSettings",
"value": "={{{ \"squareBracketsProcessing\":\"IGNORE_BRACKETS\"} }}"
}
]
},
"genericAuthType": "httpBearerAuth"
},
"credentials": {
"httpBearerAuth": {
"id": "6lSuuSDajZrvI2GM",
"name": "InfraNodus API Key"
}
},
"typeVersion": 4.2
},
{
"id": "cebe84e6-3f9d-4806-b42a-2664717baef1",
"name": "Sticky Note",
"type": "n8n-nodes-base.stickyNote",
"position": [
-540,
-360
],
"parameters": {
"width": 500,
"height": 520,
"content": "## 1. Listen to a Google Drive folder / create new file event\n\n### You need to create the folder first and upload the files there. \n\n🚨 Specify the folder you want to use here"
},
"typeVersion": 1
},
{
"id": "cff84fdb-9fd1-4600-a436-d452ec73778d",
"name": "Sticky Note1",
"type": "n8n-nodes-base.stickyNote",
"position": [
20,
-360
],
"parameters": {
"width": 500,
"height": 520,
"content": "## 2. Iterate through every file extracted\n\n### We get the ID of the file and iterate through them one by one\n\n\n"
},
"typeVersion": 1
},
{
"id": "e0e1bab5-e281-4572-8207-227aec2fe4bf",
"name": "Sticky Note2",
"type": "n8n-nodes-base.stickyNote",
"position": [
580,
-520
],
"parameters": {
"width": 500,
"height": 840,
"content": "## 3. Extract text from the files\n\n### Use the built-in n8n extractor tools to convert different file formats: PDF, txt, or markdown to plain text.\n\n"
},
"typeVersion": 1
},
{
"id": "879324fc-275a-4e5f-b23d-d9a3369d86ac",
"name": "Sticky Note3",
"type": "n8n-nodes-base.stickyNote",
"position": [
1200,
-380
],
"parameters": {
"width": 500,
"height": 840,
"content": "## 4. Save the file to InfraNodus\n\n### Save the text content of the file to the graph, using its name as category (so you can manually delete it after) and additional processing settings (in the `body` field of the POST request.\n\nNote: you can use an existing graph name (the `name` field) or specify a new name and the graph will be created.\n\n"
},
"typeVersion": 1
},
{
"id": "de8c6bde-5576-44d4-9bdf-8e36e22ff00d",
"name": "Map PDF to Text",
"type": "n8n-nodes-base.set",
"position": [
1240,
-100
],
"parameters": {
"options": {},
"assignments": {
"assignments": [
{
"id": "fd160009-0b92-46fc-9e34-a1283b810e91",
"name": "data",
"type": "string",
"value": "={{ $json.text }}"
}
]
}
},
"typeVersion": 3.4
},
{
"id": "571a5204-afae-4329-9d87-c0474dadb20b",
"name": "New File Created in the Google Folder?",
"type": "n8n-nodes-base.googleDriveTrigger",
"position": [
-480,
-100
],
"parameters": {
"event": "fileCreated",
"options": {
"fileType": "all"
},
"pollTimes": {
"item": [
{
"mode": "everyMinute"
}
]
},
"triggerOn": "specificFolder",
"folderToWatch": {
"__rl": true,
"mode": "list",
"value": "1NFekB1_H3ADF8C5o4eN_l893d6INbfRA",
"cachedResultUrl": "https://drive.google.com/drive/folders/1NFekB1_H3ADF8C5o4eN_l893d6INbfRA",
"cachedResultName": "Polysingularity"
}
},
"credentials": {
"googleDriveOAuth2Api": {
"id": "oz9iNMxcuQ2pxr1e",
"name": "Google Drive account"
}
},
"typeVersion": 1
},
{
"id": "dda0c5dc-b90f-4ca9-b662-387ee7166985",
"name": "Sticky Note5",
"type": "n8n-nodes-base.stickyNote",
"position": [
1820,
-380
],
"parameters": {
"color": 2,
"width": 500,
"height": 840,
"content": "## Optional: Better PDF Conversion\n\n### Standard Map PDF to Text node will split your PDF files into very short chunks, which deteriorates retrieval. \n\nUse can use [ConvertAPI](https://convertapi.com?ref=4l54n) which is a high-quality convertor that will respect the layout of the original document and not cut the paragraphs into short chunks. \n\nHere is an HTTP node that makes a request to their API to convert the PDF into text. If you have a ConvertAPI account, you can replace the \"Map PDF to Text\" node in step 4 with this node. \n"
},
"typeVersion": 1
},
{
"id": "a3461e66-7325-47aa-a56a-3cafceb44d15",
"name": "Convert File to PDF",
"type": "n8n-nodes-base.httpRequest",
"disabled": true,
"position": [
1880,
0
],
"parameters": {
"url": "https://v2.convertapi.com/convert/pdf/to/txt",
"method": "POST",
"options": {
"response": {
"response": {
"responseFormat": "text"
}
}
},
"sendBody": true,
"contentType": "multipart-form-data",
"sendHeaders": true,
"authentication": "genericCredentialType",
"bodyParameters": {
"parameters": [
{
"name": "file",
"parameterType": "formBinaryData",
"inputDataFieldName": "data"
}
]
},
"genericAuthType": "httpBearerAuth",
"headerParameters": {
"parameters": [
{
"name": "Accept",
"value": "application/octet-stream"
}
]
}
},
"credentials": {
"httpBearerAuth": {
"id": "mDxLoJUWSmuTJsAC",
"name": "ConvertAPI"
}
},
"notesInFlow": true,
"typeVersion": 4.2
},
{
"id": "84c03b58-a47f-4465-a9bc-f7ad050bcdc6",
"name": "Sticky Note6",
"type": "n8n-nodes-base.stickyNote",
"position": [
-540,
-1420
],
"parameters": {
"color": 6,
"width": 1060,
"height": 980,
"content": "# Sync Google Drive files to an InfraNodus graph\n\n## This workflow listens to newly added files in the Google Drive folder you specify and automatically uploads it to a new or existing [InfraNodus graph](https://infranodus.com). \n\n### InfraNodus visualizes your text as a knowledge graph, showing the main topics and ideas inside. It also provides API access to your knownledge graphs, so you can use them as \"experts\" for your AI agent n8n workflows.\n\nYou need an [InfraNodus](https://infranodus.com) account to use this workflow.\n\nDetailed tutorial on this workflow: [https://support.noduslabs.com/hc/en-us/articles/20267019838108-Upload-Sync-Your-Google-Drive-Folder-with-InfraNodus-using-n8n](https://support.noduslabs.com/hc/en-us/articles/20267019838108-Upload-Sync-Your-Google-Drive-Folder-with-InfraNodus-using-n8n)\n\n🚨 note that when you delete the file, you'll have to manually remove it from InfraNodus\n\n\n\n"
},
"typeVersion": 1
}
],
"active": false,
"pinData": {},
"settings": {
"executionOrder": "v1"
},
"versionId": "57fa8143-ac10-4655-8fe0-5e046ad022ad",
"connections": {
"Switch": {
"main": [
[
{
"node": "Extract from PDF",
"type": "main",
"index": 0
}
],
[
{
"node": "Extract from Text File",
"type": "main",
"index": 0
}
],
[
{
"node": "Extract from Markdown",
"type": "main",
"index": 0
}
],
[],
[]
]
},
"Retrieve File": {
"main": [
[
{
"node": "Switch",
"type": "main",
"index": 0
}
]
]
},
"Loop Over Items": {
"main": [
[],
[
{
"node": "Retrieve File",
"type": "main",
"index": 0
}
]
]
},
"Map PDF to Text": {
"main": [
[
{
"node": "InfraNodus Save to Graph",
"type": "main",
"index": 0
}
]
]
},
"Extract from PDF": {
"main": [
[
{
"node": "Map PDF to Text",
"type": "main",
"index": 0
}
]
]
},
"Extract from Markdown": {
"main": [
[
{
"node": "InfraNodus Save to Graph",
"type": "main",
"index": 0
}
]
]
},
"Extract from Text File": {
"main": [
[
{
"node": "InfraNodus Save to Graph",
"type": "main",
"index": 0
}
]
]
},
"InfraNodus Save to Graph": {
"main": [
[
{
"node": "Loop Over Items",
"type": "main",
"index": 0
}
]
]
},
"New File Created in the Google Folder?": {
"main": [
[
{
"node": "Loop Over Items",
"type": "main",
"index": 0
}
]
]
}
}
}
