Sync new data between two apps

Sync new data between two apps

by n8n-team0 views

Description

Categories

🔧 Engineering

Nodes Used

n8n-nodes-base.coden8n-nodes-base.filtern8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.stickyNoten8n-nodes-base.googleSheetsn8n-nodes-base.manualTriggern8n-nodes-base.postgresTrigger
PriceFree
Views0
Last Updated11/28/2025
workflow.json
{
  "nodes": [
    {
      "id": "678e86bc-2755-4c79-97d6-fa4da1ed9ff9",
      "name": "Postgres Trigger",
      "type": "n8n-nodes-base.postgresTrigger",
      "disabled": true,
      "position": [
        500,
        480
      ],
      "parameters": {
        "schema": {
          "__rl": true,
          "mode": "list",
          "value": "computed",
          "cachedResultName": "computed"
        },
        "firesOn": "UPDATE",
        "tableName": {
          "__rl": true,
          "mode": "list",
          "value": "users",
          "cachedResultName": "users"
        },
        "additionalFields": {}
      },
      "credentials": {
        "postgres": {
          "id": "8",
          "name": "Postgres Product Analytics"
        }
      },
      "typeVersion": 1
    },
    {
      "id": "accecdfc-283c-4119-9b23-4cf44bc5e68c",
      "name": "Filter",
      "type": "n8n-nodes-base.filter",
      "notes": "Filter out @n8n.io emails",
      "position": [
        980,
        540
      ],
      "parameters": {
        "conditions": {
          "string": [
            {
              "value1": "={{ $json.email }}",
              "value2": "n8n.io",
              "operation": "notContains"
            }
          ]
        }
      },
      "notesInFlow": true,
      "typeVersion": 1
    },
    {
      "id": "d16d7ae7-0c60-48f0-97fe-c7618cab73d3",
      "name": "Sticky Note1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        0,
        380
      ],
      "parameters": {
        "width": 424,
        "height": 559,

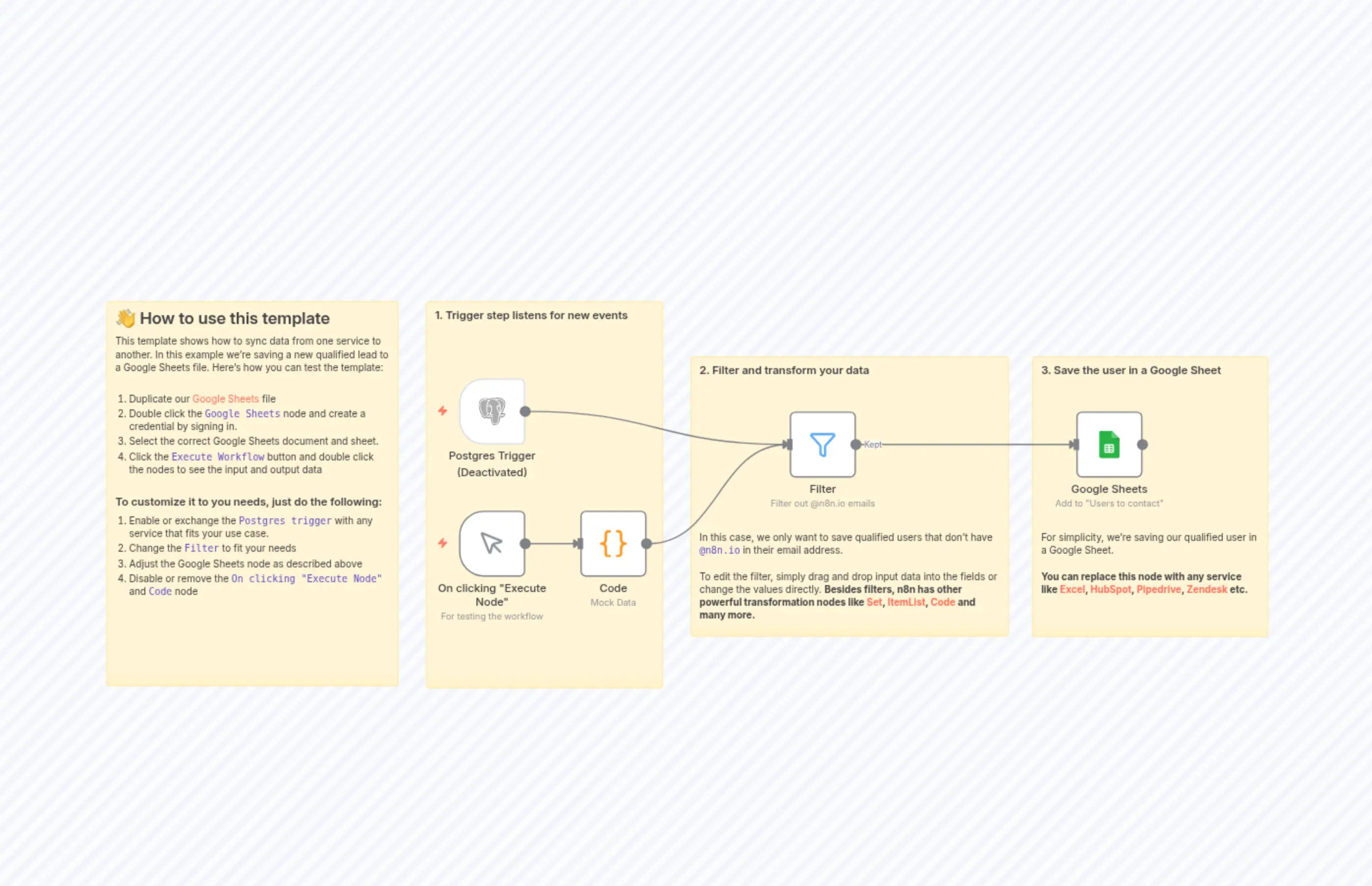

        "content": "## 👋 How to use this template\nThis template shows how to sync data from one service to another. In this example we're saving a new qualified lead to a Google Sheets file. Here's how you can test the template:\n\n1. Duplicate our [Google Sheets](https://docs.google.com/spreadsheets/d/1gVfyernVtgYXD-oPboxOSJYQ-HEfAguEryZ7gTtK0V8/edit?usp=sharing) file\n2. Double click the `Google Sheets` node and create a credential by signing in.\n3. Select the correct Google Sheets document and sheet.\n4. Click the `Execute Workflow` button and double click the nodes to see the input and output data\n\n### To customize it to you needs, just do the following:\n1. Enable or exchange the `Postgres trigger` with any service that fits your use case.\n2. Change the `Filter` to fit your needs\n3. Adjust the Google Sheets node as described above\n4. Disable or remove the `On clicking \"Execute Node\"` and `Code` node\n"
      },
      "typeVersion": 1
    },
    {
      "id": "8bc7439e-d814-4960-8b75-fc77805f74c7",
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        460,
        380
      ],
      "parameters": {
        "width": 344,
        "height": 562,
        "content": "### 1. Trigger step listens for new events\n\n"
      },
      "typeVersion": 1
    },
    {
      "id": "63b2bc4c-8e33-4432-af4b-4595b2012ce1",
      "name": "Sticky Note6",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        840,
        460
      ],
      "parameters": {
        "width": 462,
        "height": 407,
        "content": "### 2. Filter and transform your data\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\nIn this case, we only want to save qualified users that don't have `@n8n.io` in their email address.\n\nTo edit the filter, simply drag and drop input data into the fields or change the values directly. **Besides filters, n8n has other powerful transformation nodes like [Set](https://docs.n8n.io/integrations/builtin/core-nodes/n8n-nodes-base.set/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.set), [ItemList](https://docs.n8n.io/integrations/builtin/core-nodes/n8n-nodes-base.itemlists/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.itemLists), [Code](https://docs.n8n.io/integrations/builtin/core-nodes/n8n-nodes-base.code/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.code) and many more.**"
      },
      "typeVersion": 1
    },
    {
      "id": "448e2c49-aa75-405b-ba51-3acbce0fb758",
      "name": "Sticky Note2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1340,
        460
      ],
      "parameters": {
        "width": 342.52886836027733,
        "height": 407.43618112665195,
        "content": "### 3. Save the user in a Google Sheet\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\nFor simplicity, we're saving our qualified user in a Google Sheet.\n\n**You can replace this node with any service like [Excel](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.microsoftexcel/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.microsoftExcel), [HubSpot](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.hubspot/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.hubspot), [Pipedrive](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.pipedrive/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.pipedrive), [Zendesk](https://docs.n8n.io/integrations/builtin/app-nodes/n8n-nodes-base.zendesk/?utm_source=n8n_app&utm_medium=node_settings_modal-credential_link&utm_campaign=n8n-nodes-base.zendesk) etc.**"
      },
      "typeVersion": 1
    },
    {
      "id": "c0ee182d-4c31-488b-a547-5f2d2ba8786e",
      "name": "On clicking \"Execute Node\"",
      "type": "n8n-nodes-base.manualTrigger",
      "notes": "For testing the workflow",
      "position": [
        500,
        680
      ],
      "parameters": {},
      "notesInFlow": true,
      "typeVersion": 1
    },
    {
      "id": "87f2a11e-f704-4c9e-ac8b-ee1f057cd347",
      "name": "Code",
      "type": "n8n-nodes-base.code",
      "notes": "Mock Data",
      "position": [
        680,
        680
      ],
      "parameters": {
        "jsCode": "return [\n  {\n    \"id\": 1,\n    \"username\": \"max_mustermann\",\n    \"email\": \"[email protected]\",\n    \"company_size\": \"500-999\",\n    \"role\": \"Sales\",\n    \"users\": 50\n  }\n]"
      },
      "notesInFlow": true,
      "typeVersion": 1
    },
    {
      "id": "0992077f-b6d3-47d2-94d2-c612dfbf5062",
      "name": "Google Sheets",
      "type": "n8n-nodes-base.googleSheets",
      "notes": "Add to \"Users to contact\"",
      "position": [
        1400,
        540
      ],
      "parameters": {
        "columns": {
          "value": {
            "id": "={{ $json.id }}",
            "email": "={{ $json.email }}",
            "username": "={{ $json.username }}"
          },
          "schema": [
            {
              "id": "id",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "id",
              "defaultMatch": true,
              "canBeUsedToMatch": true
            },
            {
              "id": "username",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "username",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "email",
              "type": "string",
              "display": true,
              "removed": false,
              "required": false,
              "displayName": "email",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            },
            {
              "id": "contacted",
              "type": "string",
              "display": true,
              "removed": true,
              "required": false,
              "displayName": "contacted",
              "defaultMatch": false,
              "canBeUsedToMatch": true
            }
          ],
          "mappingMode": "defineBelow",
          "matchingColumns": [
            "id"
          ]
        },
        "options": {
          "cellFormat": "USER_ENTERED"
        },
        "operation": "appendOrUpdate",
        "sheetName": {
          "__rl": true,
          "mode": "list",
          "value": "gid=0",
          "cachedResultUrl": "https://docs.google.com/spreadsheets/d/1gVfyernVtgYXD-oPboxOSJYQ-HEfAguEryZ7gTtK0V8/edit#gid=0",
          "cachedResultName": "Sheet1"
        },
        "documentId": {
          "__rl": true,
          "mode": "list",
          "value": "1gVfyernVtgYXD-oPboxOSJYQ-HEfAguEryZ7gTtK0V8",
          "cachedResultUrl": "https://docs.google.com/spreadsheets/d/1gVfyernVtgYXD-oPboxOSJYQ-HEfAguEryZ7gTtK0V8/edit?usp=drivesdk",
          "cachedResultName": "Qualified leads to contact"
        }
      },
      "credentials": {
        "googleSheetsOAuth2Api": {
          "id": "9",
          "name": "Google Sheets account"
        }
      },
      "notesInFlow": true,
      "typeVersion": 4
    }
  ],
  "connections": {
    "Code": {
      "main": [
        [
          {
            "node": "Filter",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Filter": {
      "main": [
        [
          {
            "node": "Google Sheets",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Postgres Trigger": {
      "main": [
        [
          {
            "node": "Filter",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "On clicking \"Execute Node\"": {
      "main": [
        [
          {
            "node": "Code",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  }
}
