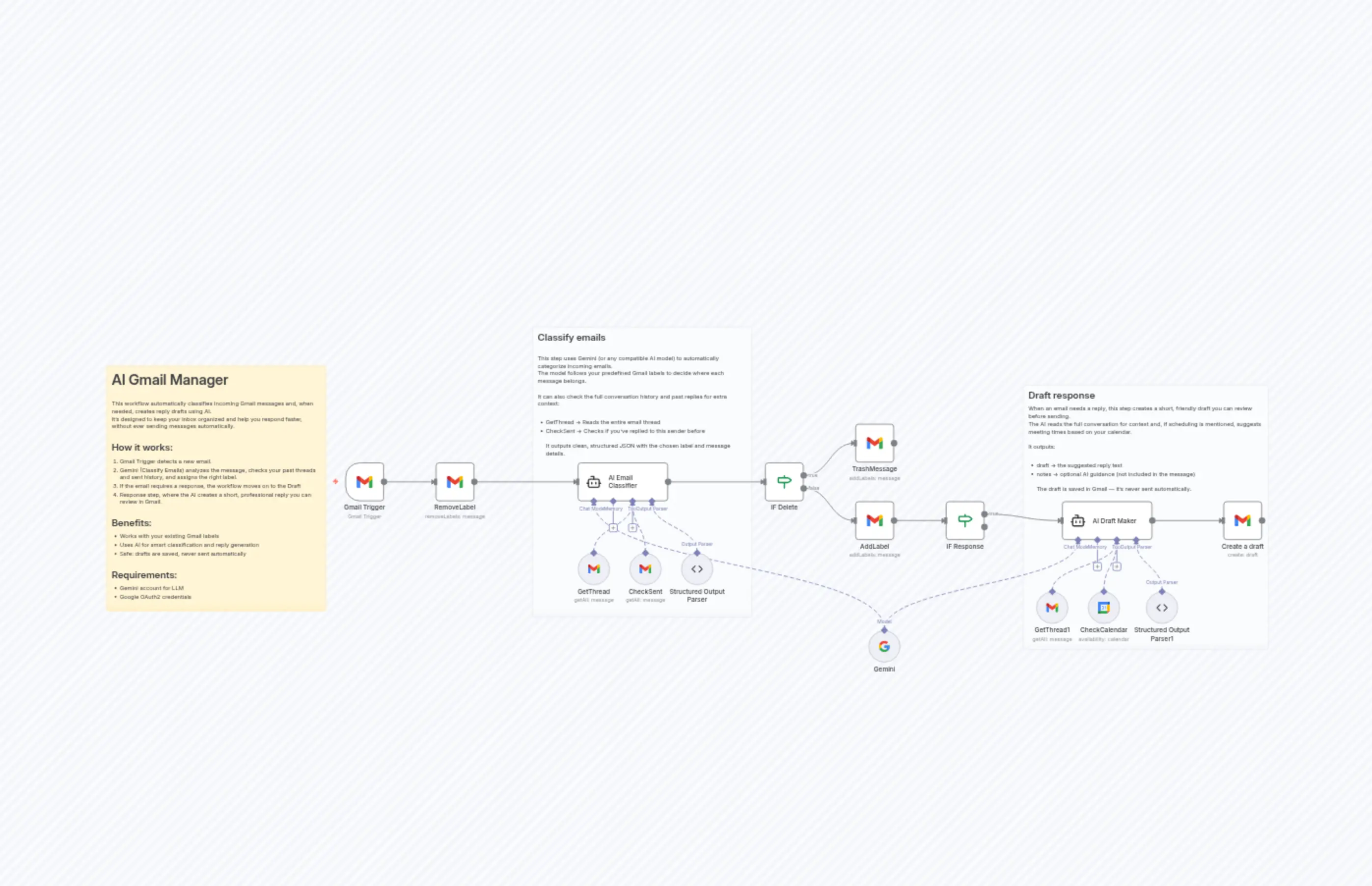

AI Gmail Manager

{
  "id": "xgrbRGmOiwsrm54g",
  "meta": {
    "instanceId": "1338ae0c1684553d97353e0b9ff6e2af1a34b1745411ed0c59c1f0452e37244d",
    "templateCredsSetupCompleted": true
  },
  "name": "AI Gmail Manager",
  "tags": [],
  "nodes": [
    {
      "id": "9f9eac49-b13b-47d2-9801-3c46c11cddc2",
      "name": "Gmail Trigger",
      "type": "n8n-nodes-base.gmailTrigger",
      "position": [
        0,
        -208
      ],
      "parameters": {
        "filters": {},
        "pollTimes": {
          "item": [
            {
              "mode": "everyMinute"
            }
          ]
        }
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 1.3
    },
    {
      "id": "a66eeb1f-57ee-4b43-9aea-6abeb47c9a1c",
      "name": "Structured Output Parser",
      "type": "@n8n/n8n-nodes-langchain.outputParserStructured",
      "position": [
        832,
        16
      ],
      "parameters": {
        "jsonSchemaExample": "{\n  \"label\": \"Label name\",\n  \"labelID\": \"Label ID\",\n  \"id\": \"Email message ID\",\n  \"requiresResponse\": true\n}"
      },
      "typeVersion": 1.3
    },
    {
      "id": "f3d14e47-7403-481f-a15d-87adf9713bdb",
      "name": "RemoveLabel",
      "type": "n8n-nodes-base.gmail",
      "position": [
        224,
        -208
      ],
      "webhookId": "61056e45-2bed-4c44-8280-6a1c181acebf",
      "parameters": {
        "labelIds": [
          "YELLOW_STAR",
          "INBOX",
          "IMPORTANT",
          "CATEGORY_UPDATES",
          "CATEGORY_SOCIAL",
          "CATEGORY_PROMOTIONS",
          "CATEGORY_PERSONAL",
          "CATEGORY_FORUMS"
        ],
        "messageId": "={{ $json.id }}",
        "operation": "removeLabels"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "1883ad7e-1712-4f95-9164-8b1742d08343",
      "name": "AddLabel",
      "type": "n8n-nodes-base.gmail",
      "position": [
        1264,
        -112
      ],
      "webhookId": "3c8bde38-def9-4eca-b854-6965c9df84d8",
      "parameters": {
        "labelIds": "={{ $json.output.labelID }}",
        "messageId": "={{ $('Gmail Trigger').item.json.id }}",
        "operation": "addLabels"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "a4c1fbf6-4111-4d97-9ea3-8963f48b1648",
      "name": "TrashMessage",
      "type": "n8n-nodes-base.gmail",
      "position": [
        1264,
        -304
      ],
      "webhookId": "ba54fb47-43a2-4fe8-9436-92d44b720a40",
      "parameters": {
        "labelIds": [
          "TRASH"
        ],
        "messageId": "={{ $('Gmail Trigger').item.json.id }}",
        "operation": "addLabels"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "94a9bed2-df2c-4e55-87ed-5aa495a9f0ea",
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        464,
        -544
      ],
      "parameters": {
        "color": 7,
        "width": 544,
        "height": 720,
        "content": "## Classify emails\n\nThis step uses Gemini (or any compatible AI model) to automatically categorize incoming emails.\nThe model follows your predefined Gmail labels to decide where each message belongs.\n\nIt can also check the full conversation history and past replies for extra context:\n\n- GetThread → Reads the entire email thread\n- CheckSent → Checks if you’ve replied to this sender before\n\nIt outputs clean, structured JSON with the chosen label and message details."
      },
      "typeVersion": 1
    },
    {
      "id": "96e9fbad-4274-4649-8f71-1a97bba948df",
      "name": "GetThread",
      "type": "n8n-nodes-base.gmailTool",
      "position": [
        576,
        16
      ],
      "webhookId": "f2d16335-4c75-4d6f-8594-03f59f7fc932",
      "parameters": {
        "filters": {
          "q": "=from:{{ $('Gmail Trigger').item.json.From }}"
        },
        "operation": "getAll",
        "returnAll": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('Return_All', ``, 'boolean') }}"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "335c960f-eedc-4d90-9fd6-6e174fdcd0a8",
      "name": "CheckSent",
      "type": "n8n-nodes-base.gmailTool",
      "position": [
        704,
        16
      ],
      "webhookId": "d76d71b1-9351-4f14-90d7-6635de065068",
      "parameters": {
        "filters": {
          "q": "=to:{{ $('Gmail Trigger').item.json.From }}"
        },
        "operation": "getAll",
        "returnAll": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('Return_All', ``, 'boolean') }}"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "9db911b8-430c-41a8-8dd2-09f446526358",
      "name": "Gemini",
      "type": "@n8n/n8n-nodes-langchain.lmChatGoogleGemini",
      "position": [
        1296,
        208
      ],
      "parameters": {
        "options": {}
      },
      "credentials": {
        "googlePalmApi": {
          "id": "eQiUuaFUQ4qSNdZB",
          "name": "GeminiAuth"
        }
      },
      "typeVersion": 1
    },
    {
      "id": "390214f0-5930-4655-a2c4-b0a814652388",
      "name": "IF Delete",
      "type": "n8n-nodes-base.if",
      "position": [
        1040,
        -208
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "strict"
          },
          "combinator": "and",
          "conditions": [
            {
              "id": "dac0c540-5afe-4df3-b20b-8526effbe68b",
              "operator": {
                "name": "filter.operator.equals",
                "type": "string",
                "operation": "equals"
              },
              "leftValue": "={{ $json.output.label }}",
              "rightValue": "DELETE"
            }
          ]
        }
      },
      "typeVersion": 2.2
    },
    {
      "id": "fdf0e08d-5184-4ae4-aa5e-ed8dc1bd1f00",
      "name": "IF Response",
      "type": "n8n-nodes-base.if",
      "position": [
        1488,
        -112
      ],
      "parameters": {
        "options": {},
        "conditions": {
          "options": {
            "version": 2,
            "leftValue": "",
            "caseSensitive": true,
            "typeValidation": "strict"
          },
          "combinator": "and",
          "conditions": [
            {
              "id": "63984b31-4839-46d1-9c3e-0bf2a966e126",
              "operator": {
                "type": "boolean",
                "operation": "true",
                "singleValue": true
              },
              "leftValue": "={{ $('AI Email Classifier').item.json.output.requiresResponse }}",
              "rightValue": "true"
            }
          ]
        }
      },
      "typeVersion": 2.2
    },
    {
      "id": "4ad414d5-1f4d-42e6-9ee4-c6e3f3b348d4",
      "name": "Create a draft",
      "type": "n8n-nodes-base.gmail",
      "position": [
        2176,
        -112
      ],
      "webhookId": "21d08e97-ffd6-41f8-91d3-683d112be28a",
      "parameters": {
        "message": "={{ $json.output.draft }}",
        "options": {
          "sendTo": "={{ $('Gmail Trigger').item.json.From }}",
          "threadId": "={{ $('Gmail Trigger').item.json.threadId }}"
        },
        "subject": "=Re: {{ $('Gmail Trigger').item.json.Subject }}",
        "resource": "draft"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "242f05bd-60e6-4e78-87c3-a4c96647ce18",
      "name": "GetThread1",
      "type": "n8n-nodes-base.gmailTool",
      "position": [
        1712,
        112
      ],
      "webhookId": "f2d16335-4c75-4d6f-8594-03f59f7fc932",
      "parameters": {
        "filters": {
          "q": "=from:{{ $('Gmail Trigger').item.json.From }}"
        },
        "operation": "getAll",
        "returnAll": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('Return_All', ``, 'boolean') }}"
      },
      "credentials": {
        "gmailOAuth2": {
          "id": "zUaPoJi0uzMTnUY5",
          "name": "GoogleAuth"
        }
      },
      "typeVersion": 2.1
    },
    {
      "id": "8df829c7-fb54-41fd-bd6e-dc3e6f35ddbf",
      "name": "CheckCalendar",
      "type": "n8n-nodes-base.googleCalendarTool",
      "position": [
        1840,
        112
      ],
      "parameters": {
        "options": {
          "timezone": {
            "__rl": true,
            "mode": "list",
            "value": "[YOUR OWN TIMEZEONE HERE]",
            "cachedResultName": "[YOUR OWN TIMEZONE HERE]"
          }
        },
        "timeMax": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('End_Time', ``, 'string') }}",
        "timeMin": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('Start_Time', ``, 'string') }}",
        "calendar": {
          "__rl": true,
          "mode": "list",
          "value": "[YOUR OWN EMAIL HERE]",
          "cachedResultName": "Google"
        },
        "resource": "calendar"
      },
      "credentials": {
        "googleCalendarOAuth2Api": {
          "id": "zqtSZV07a6uCDQUk",
          "name": "Google Calendar account"
        }
      },
      "typeVersion": 1.3
    },
    {
      "id": "7d87941c-a1d7-4476-ba1d-ad60a08c08ad",
      "name": "Structured Output Parser1",
      "type": "@n8n/n8n-nodes-langchain.outputParserStructured",
      "position": [
        1984,
        112
      ],
      "parameters": {
        "jsonSchemaExample": "{\n  \"draft\": \"string\",\n  \"notes\": \"string\"\n}"
      },
      "typeVersion": 1.3
    },
    {
      "id": "cf93dee2-2c6c-4d01-ab7c-442bd32a1d7b",
      "name": "Sticky Note1",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        1680,
        -400
      ],
      "parameters": {
        "color": 7,
        "width": 608,
        "height": 656,
        "content": "## Draft response\nWhen an email needs a reply, this step creates a short, friendly draft you can review before sending.\nThe AI reads the full conversation for context and, if scheduling is mentioned, suggests meeting times based on your calendar.\n\nIt outputs:\n\n- draft → the suggested reply text\n- notes → optional AI guidance (not included in the message)\n\nThe draft is saved in Gmail — it’s never sent automatically."
      },
      "typeVersion": 1
    },
    {
      "id": "e44b892d-b865-4fd2-86f7-6750f621fef4",
      "name": "AI Email Classifier",
      "type": "@n8n/n8n-nodes-langchain.agent",
      "position": [
        568,
        -208
      ],
      "parameters": {
        "text": "=Objective:\nAnalyze the provided email and classify it with the most appropriate label. Respond strictly in JSON (schema: label, labelID, id, requiresResponse).\nOnly output JSON — no explanations. You have access to Gmail tools to gather context and should use them when necessary.\n\nTool Access:\n- GetThread: use this to fetch all messages in the same Gmail thread using the provided threadId. This lets you review past exchanges for context.\n- CheckSent: use this to check if there are any emails previously sent by me to this sender (helps identify ongoing conversations).\n\n\nYour email (for context): [INPUT YOUR EMAIL HERE]\n\nInput Email Data (from n8n JSON item for the current email):\nSender Email: {{ $('Gmail Trigger').item.json.from }}\nSubject: {{ $('Gmail Trigger').item.json.subject }}\nSnippet: {{ $('Gmail Trigger').item.json.snippet }}\nDate: {{ $('Gmail Trigger').item.json.internalDate }}\nEmail ID: {{ $('Gmail Trigger').item.json.id }}\nThread ID: {{ $('Gmail Trigger').item.json.threadId }}\nExisting Gmail Labels: {{ $json.labelIds.join(', ') }}\n\nLabeling Rules:\n\n[01] [INPUTE LABEL 1] (labelID: [INPUT LABEL 1's ID]) → [INPUT: Types of emails that should be part of Label 1, e.g. vendor emails for ecommerce business].\n[02] [INPUT LABEL 2] (labelID: [INPUT LABEL 2's ID]) → [INPUT: Types of emails that should be part of Label 2].\n\nDELETE (does NOT have a LabelID)→ Emails that do not fit any SAVE rules.\n\nBehavior Rules:\n1. Before classifying, use GetThread with the provided threadId to see if this is a reply or part of an existing conversation.\n2. Use CheckSent to confirm whether I’ve interacted with this sender before — this can help detect ongoing conversations.\n3. If this email requires a reply (scheduling, questions directed to me, next-step confirmations that request action), set requiresResponse to true and do NOT write the draft here — only set the flag. The actual draft will be created by a separate drafting node.\n4. Else set requiresResponse to false.\n\nOutput Format (strict JSON):\n{\n  \"label\": \"Label name\",\n  \"labelID\": \"Label ID\",\n  \"id\": \"Email message ID\",\n  \"requiresResponse\": true or false\n}\n\nAdditional Guidance:\n\n-Only return one label per email.\n-Do not include any text outside of the JSON object.",
        "options": {},
        "promptType": "define",
        "hasOutputParser": true
      },
      "typeVersion": 3
    },
    {
      "id": "db5ab5f9-320c-4b89-ba46-5ea013109f64",
      "name": "AI Draft Maker",
      "type": "@n8n/n8n-nodes-langchain.agent",
      "position": [
        1768,
        -112
      ],
      "parameters": {
        "text": "=Objective:\nCreate a concise, friendly, and professional reply draft for the provided email thread. Do NOT send the message — only generate the draft text.\n\nTool Access:\n- GetThread1: use this to fetch the full thread using the threadId below, if more context is needed.\n- CheckCalendar: use this to find available time slots within the next 7 days (local time: [INPUT YOUR LOCAL TZ]) if scheduling is requested.\n\nContext:\n- My email: [INPUT YOUR EMAIL HERE]\n- Recipient (original sender): {{ $('Gmail Trigger').item.json.From }}\n- Original subject: {{ $('Gmail Trigger').item.json.Subject }}\n- Thread ID: {{ $('Gmail Trigger').item.json.threadId }}\n- Snippet: {{ $('Gmail Trigger').item.json.snippet }}\n- Full thread: use GetThread if additional context is required.\n\nDrafting Rules:\n1. Detect the sender’s language. If they wrote in English, reply in English; if Spanish, reply in Spanish; if French, reply in French. If unclear, default to English.\n2. Tone: friendly, professional, natural.\n3. Length: keep it short (3–6 sentences).\n4. If scheduling is requested:\n   - Use CheckCalendar to propose 2–3 available time slots in the next 7 days (local time).\n   - Format times like: “Tuesday, May 12 at 15:00 CEST”.\n   - Make time zone clear ([INPUT YOUR LOCAL TIMEZONE]).\n5. For confirmations/info requests: answer directly and clearly.\n6. For document requests: say you will attach them and include: “[Attach documents]”.\n7. Start with a greeting: “Hi [Name],” (adapted to language).\n8. End with: “Best, [INPUT YOUR NAME/YOUR BUSINESS' NAME]” or the equivalent in that language.\n9. Never include internal notes in the email body. Put any short reviewer guidance in `notes`.\n\nOutput Format (JSON):\n{\n  \"draft\": \"email body here\",\n  \"notes\": \"short reasoning or summary\"\n}\n",
        "options": {},
        "promptType": "define",
        "hasOutputParser": true
      },
      "typeVersion": 3
    },
    {
      "id": "739c6768-6fa3-45fe-ab51-84b07da6e6a0",
      "name": "Sticky Note2",
      "type": "n8n-nodes-base.stickyNote",
      "position": [
        -592,
        -448
      ],
      "parameters": {
        "width": 544,
        "height": 608,
        "content": "# AI Gmail Manager\n\nThis workflow automatically classifies incoming Gmail messages and, when needed, creates reply drafts using AI.\nIt’s designed to keep your inbox organized and help you respond faster, without ever sending messages automatically.\n\n## How it works:\n1. Gmail Trigger detects a new email.\n2. Gemini (Classify Emails) analyzes the message, checks your past threads and sent history, and assigns the right label.\n3. If the email requires a response, the workflow moves on to the Draft \n4. Response step, where the AI creates a short, professional reply you can review in Gmail.\n\n## Benefits:\n- Works with your existing Gmail labels\n- Uses AI for smart classification and reply generation\n- Safe: drafts are saved, never sent automatically\n\n## Requirements:\n- Gemini account for LLM\n- Google OAuth2 credentials"
      },
      "typeVersion": 1
    }
  ],
  "active": true,
  "pinData": {},
  "settings": {
    "callerPolicy": "workflowsFromSameOwner",
    "errorWorkflow": "2wvl7ae8yQzVXgvA",
    "availableInMCP": false,
    "executionOrder": "v1",
    "timeSavedPerExecution": 5
  },
  "versionId": "f8cb4394-0baf-4c9d-95e4-aaec8335e3cd",
  "connections": {
    "Gemini": {
      "ai_languageModel": [
        [
          {
            "node": "AI Email Classifier",
            "type": "ai_languageModel",
            "index": 0
          },
          {
            "node": "AI Draft Maker",
            "type": "ai_languageModel",
            "index": 0
          }
        ]
      ]
    },
    "AddLabel": {
      "main": [
        [
          {
            "node": "IF Response",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "CheckSent": {
      "ai_tool": [
        [
          {
            "node": "AI Email Classifier",
            "type": "ai_tool",
            "index": 0
          }
        ]
      ]
    },
    "GetThread": {
      "ai_tool": [
        [
          {
            "node": "AI Email Classifier",
            "type": "ai_tool",
            "index": 0
          }
        ]
      ]
    },
    "IF Delete": {
      "main": [
        [
          {
            "node": "TrashMessage",
            "type": "main",
            "index": 0
          }
        ],
        [
          {
            "node": "AddLabel",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "GetThread1": {
      "ai_tool": [
        [
          {
            "node": "AI Draft Maker",
            "type": "ai_tool",
            "index": 0
          }
        ]
      ]
    },
    "IF Response": {
      "main": [
        [
          {
            "node": "AI Draft Maker",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "RemoveLabel": {
      "main": [
        [
          {
            "node": "AI Email Classifier",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "CheckCalendar": {
      "ai_tool": [
        [
          {
            "node": "AI Draft Maker",
            "type": "ai_tool",
            "index": 0
          }
        ]
      ]
    },
    "Gmail Trigger": {
      "main": [
        [
          {
            "node": "RemoveLabel",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "AI Draft Maker": {
      "main": [
        [
          {
            "node": "Create a draft",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "AI Email Classifier": {
      "main": [
        [
          {
            "node": "IF Delete",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Structured Output Parser": {
      "ai_outputParser": [
        [
          {
            "node": "AI Email Classifier",
            "type": "ai_outputParser",
            "index": 0
          }
        ]
      ]
    },
    "Structured Output Parser1": {
      "ai_outputParser": [
        [
          {
            "node": "AI Draft Maker",
            "type": "ai_outputParser",
            "index": 0
          }
        ]
      ]
    }
  }
}
